Switch Gears & Control Gears

Easy on. Easy off. Day and night. Switching with SIRIUS The comprehensive range of SIRIUS switching devices meets diverse requirements for the switching of industrial loads. It extends from contactors, contactor combinations and soft starters to solid-state switching devices for the frequent switching of ohmic loads and motors. Switching with SIRIUS means high contact reliability, prolonged endurance and usability in extreme conditions.

Agriculture Starter complying to latest standards Automatic Star Delta Starters IEC 60947-4-1: 2012 Compliant Direct-on-Line Starters ISI Marked-BIS Approved.

They employ tried and tested Siemens contactors and relay and this ensures the right start for motors requiring direct online starting or star delta starting.

Specifications

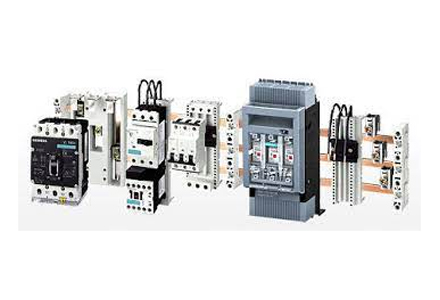

MCB’s / MCCB’s / MPCB’s / ACB’s
HRC / Semiconductors Fuse Link & Bases
SFU & Load break Switches
Power & Auxiliary Contactors
Control Relay’s
Switching Devices (Push Buttons & Switches)
Indicating Lamps & LED Blocks
Electronic Timers
Monitoring / Safety Relays
Capacitors & Capacitor Bank

Voltage Range: 415 VAC

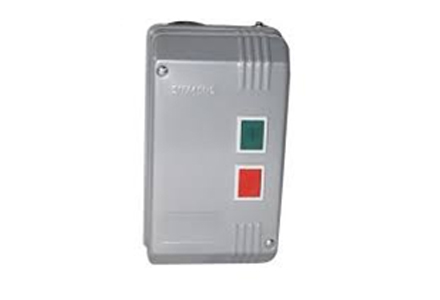

Direct on line Starter (DOL) RAJA+ : 0.25kW to 7.5kW
Automatic Star Delta Starter : 7.5kW to 18.5kW
Applications: Agriculture, Pumping, Ventilating & Compressing, Conveying, Processing Mixers, Agitators & Centrifuges

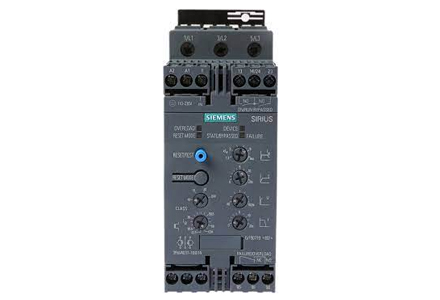

From 5.5 - 315kW
Main Voltage: 200-480V & 200-600V
Bypass System: Integrated (Hybrid technology) Controlled Phases: 3
Connection Type: Standard & Inside Delta
Control Voltage: 24V AC/DC & 110-250V AC
Motor over load protection class: 10A, 10E, 20E
Analog output: 0-10V & 4-20mA (Optional) Communication protocol (Optional) - PN-Std, PN-HF, PB, MB-TCP, MB-RTU
Operator Panel: Standard and High features HMI (Optional)
