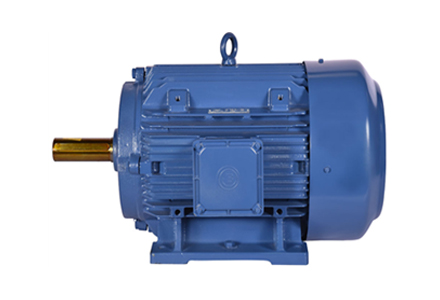

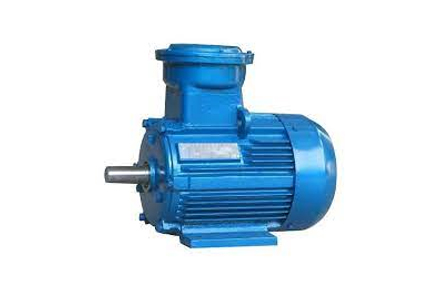

3 Phase Squirrel Cage Induction Motor, 415V ±10%, 50Hz ±5%, Combined Variation ±10%, Insulation Class F with temperature rise limited to Class B, Degree of Protection IP55, Duty S1, Ambient Temperature 45° C, Method of Cooling: Totally Enclosed Fan Cooled, Conforms to IS/IEC 60034-1, IS/IEC 60079-1, Gas Group IIA, IIB.
| Power Range: | 0.37kW - 355kW Frame Size 71 - 355L |
| Voltage Range: | 220 - 690V |
| Frequency Ranges: | 50Hz & 60Hz |
| Nos of Poles: | 2P, 4P. 6P & 8P |
| Mounting Type: | B3, B5, B14, B34 & B35 |
| Efficiency Class: | IE2, IE3 & IE4 |
| IP Protection: | IP55 |
| Application: | Fans, Blowers, Centrifugal pumps, Line shafting, Conveyors, Compressors, Crushers, Agitators, Reciprocating pumps, Sheers, Punch presses, Die stamping, Mixture, Accelerators, Milling, Forging machine, Hoist & Cranes, Refiners, Large extruders, Mills, Air Separation plants, Blast-furnace blowers, Gas compressor stations, and Gas liquefaction plants. |
| Power Range: | 0.37kW - 200kW Frame Size 80 - 315L |
| Voltage Range: | 415V ±10% |
| Frequency Ranges: | 50Hz ±5%, Combined Variation ±10% |
| Nos of Poles: | 2P, 4P. 6P & 8P |
| Mounting Type: | B3, B5, B14, B34 & B35 |
| Efficiency Class : | IE2, IE3 & IE4 |
| IP Protection: | IP55 |
| Application: | Fans, Blowers, Centrifugal pumps, Line shafting, Conveyors, Compressors, Crushers, Agitators, Reciprocating pumps, Sheers, Punch presses, Die stamping, Mixture, Accelerators, Milling, Forging machine, Hoist & Cranes, Refiners, Large extruders, Mills, Air Separation plants, Blast-furnace blowers, Gas compressor stations and Gas liquefaction plants. |
| Power Range: | 0.37 kW - 400 kW Frame Size 71 - 355L |
| Voltage Range: | 415V ±10% |
| Frequency Ranges: | 50Hz±5% Combined Variation ±10% |
| Nos of Poles: | 2P, 4P. 6P & 8P |
| Mounting Type: | B3, B5, B14, B34 & B35 |
| Efficiency Class: | IE2, IE3 & IE4 |
| IP Protection: | IP55 |

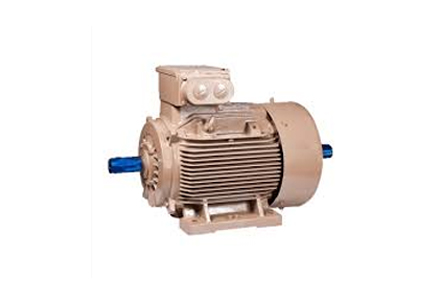

| Application: | Accelerators, Cranes and Hoists. |
3 Phase Squirrel Cage Induction Motor, 415V ±10%, 50Hz ±5%, Combined Variation ±10%, Insulation Class F with temperature rise limited to Class B, Degree of Protection IP55, Duty S1, Ambient Temperature 45° C, Method of Cooling: Totally Enclosed Fan Cooled, Conforms to IS/IEC 60034-1, IS/IEC 60079-1.
| Power Range: | 0.12KW-7.5KW Frame Size 56-132M |
| Voltage Range: | 415V ±10% |
| Frequency Ranges: | 50Hz ±5%, Combined Variation ±10% |
| Nos of Poles: | 2P, 4P. 6P & 8P |
| Mounting Type: | B3, B5, B14, B34 & B35 |
| IP Protection: | IP55 |
| Application: | Fans, Blowers, Centrifugal pumps, Line shafting, Conveyors, Compressors, Crushers, Agitators, Reciprocating pumps, Accelerators, Hoist & Cranes, Refiners, Large extruders, Mills, Air Separation plants, Blast-furnace blowers, Gas compressor stations and Gas liquefaction plants. |
