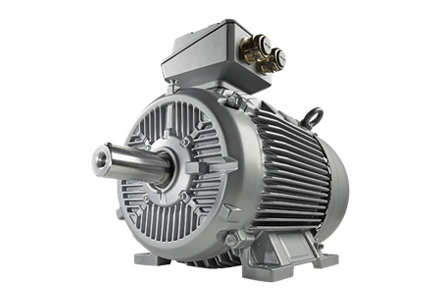

LOW VOLTAGE MOTORS

SIMOTICS low voltage motors for line and converter operation Siemens has a wide range of IEC low voltage asynchronous industrial motors from 0.09 kW to over 5 MW. IEC motors provide a high reliability and efficiency, are suitable for all industries and applications, meet all standard requirements and fulfill international and local regulations.

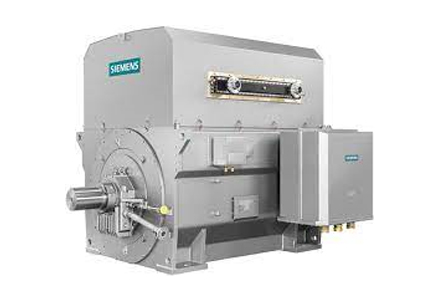

HIGH VOLTAGE MOTORS

SIMOTICS High Voltage Motors – for every demand SIMOTICS HV motors are the perfect choice for virtually any configuration in the power range from 150 KW to 100 MW, with speeds from 7 to 16,000 rpm and torques up to 40,000 kNm. Compliant with IEC and NEMA standards, the motors can be equipped with different cooling systems, explosion-proof protection classes and optional protection levels up to IP66.

Specifications

Power Range: 0.09 Kw - 1250 Kw Frame size 71-500
Voltage Range: 220-240V, 360-415V, 440-480V, 525V - 690V
Frequency Ranges: 50Hz & 60Hz
Nos of Poles: 2P, 4P, 6P & 8P
Mounting Type: IMB3, IMV5, IMV6, IMV1, IMV3, IMB5, IMB14, IMV18, IMV19, IMB35, IMB34, IMV36, IMB6, IMB7, IMB8, IMV15
Efficiency Class: IE2, IE3 & IE4
IP Protection: IP55, IP56, IP65
Application: Fans, Blowers, Centrifugal pumps, Line shafting, Conveyors, Compressors, Crushers, Agitators, Reciprocating pumps, Sheers, Punch presses, Die stamping, Mixture, Accelerators, Milling, Forging, Hoist & Cranes.

Power Range: 150kW - 7.1MW
Voltage Range: 2.3 - 6.6kV 50/60Hz Fame Size 315 - 630
Nos of Poles: 2P, 4P, 6P, 8P, 10P, 12P, 14P & 16P
Mounting Type: B3 & B35
IP Protection: IP23, IP24, IP55 & IP66
Application: Refiners, Large extruders, Mills, Crushers, Air separation plants, Blast-furnace blowers, Gas compressor stations and Gas liquefaction plants.
